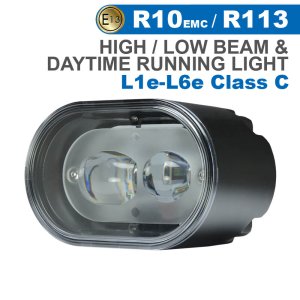

Lights For Electric Bikes E-MARK DARKBUSTER E2
E2 SIZE
Lights For Electric Bikes E-MARK DARKBUSTER E2-1-1
Lights For Electric Bikes E-MARK DARKBUSTER E2-1
Lights For Electric Bikes E-MARK DARKBUSTER E2-3
Lights For Electric Bikes E-MARK DARKBUSTER E2-4
Lights For Electric Bikes E-MARK DARKBUSTER E2

Lights For Electric Bikes E-MARK DARKBUSTER E2 (L1e~L6e)

  • Lights For Electric Bikes E2 feature Best Value, Multi-function & E-marks.
  • Both high beam and low beam pass E-MARK ECE R113 Approval.
  • Its daytime running light can help the driver be seen on the opposite side as well.
  • Such high-spec lights come with maximum brightness of 1,550 lumen but consuming only 12 watt.
  • It is E1 Junior Version.

All pictures shown are for illustration purposes only. Actual product may vary due to product enhancement.



Lights For Electric Bikes E-MARK DARKBUSTER E2 ICON




Lights For Electric Bikes E-MARK DARKBUSTER E2



Lights For Electric Bikes feature Best Value, Multi-function & E-marks.

Daytime Running Light-E2-3

Lights For Electric Bikes E2 obtain E-MARK ECE R113 approval for both high beam (driving beam) and low beam (passing beam).

According to the requirements of United Nations Economic Commission for Europe, the headlights must illuminate not only the front, but also the left and right sides to ensure optimum safety.

E2 can also operate as a daytime running light to help the driver be seen on the opposite side.

Its super feature is compliance with EU and North American regulations.



Lights For Electric Bikes E-MARK DARKBUSTER E2 HI LO






High Brightness & Low Power Consumption Design

Such high-spec lights come with maximum brightness of 1,550 lumen but consuming only 12 watt.

It is truly to meet with the original intention of electric bicycles of saving energy and the safety of drivers as well.

Benefit from unique newly tech of specialized optical and circuit design, E2 developed as a coveted headlight in 2021.



Lights For Electric Bikes E-MARK DARKBUSTER E2 LOW CONSUMPTION DESIGN






Highest Level EMC Certificate, No Worries About Interference

With significant in-house design and testing expertise, Lights for electric bikes E2 are strictly tested by the highest standard according to E-Mark & DOT standards.

REAL EMC UNECE R10 E-mark certificate from TUV would be the best protector for not interfering or not being interfered by other devices.



E-bike LED headlight



R10: https://www.unece.org/fileadmin/DAM/trans/main/wp29/wp29regs/2019/E-ECE-324-Add.9-Rev.6.pdf

Read More: https://brightstartw.com/blog/why-led-driving-light-has-to-perform-electromagnetic-compatibility-approval/




QUALITY ASSURANCE Based on FMVSS / SAE Standards

S14.4.2.3 Heat Test
S14.5.1 Vibration Test
S14.6.6.3 Temperature Cycle Test
S14.6.9 Sealing Test
Salt Spraying Test(ASTM B117-73)

E-bike LED headlight

Ebike lights

Ebike lights






BROWSE ALL ACCESSORY YOU MAY NEED



fork-mounting-brackets-bike-headlight-bracket-standard-type-a fork-mount-bike-headlight-bracket-premium-type-a stem-mount-bike-headlight-bracket-type-b

handlebar-mount-bike-headlight-bracket-type-c headlight-switch-e-bike-function-switch-type-a e-mark-電動自行車喇叭





DB E2 SPEC

Inside Chip

OSRAM Chip

Passing Beam (Low): 13W / Driving Beam (High): 14W

Daytime Running Light: 5W

Color Temperature 6000K±500K
Luminous Flux (Raw Lumens) Passing Beam (Low): 1250LM (330lx) / Driving Beam (High): 1550LM (420lx)
Daytime Running Light: 400LM
Input Voltage 12VDC / 12-120VDC (OPTIONAL)
Weatherproof IP68 (1M)
Housing Aluminum Alloy (CNC)
Operating Temperature -20℃~+60℃
Applications L1e-A/B / L2e / L3e(A1) / L4e / L5e / L6e

Lights For Electric Bikes E mark Class C approval
