7 Inch LED Headlight E-MARK E7 (L1e~L7e)

SKU: E257000E7 Category:

  • 7 inch LED headlight of E-MARK, DOT & Worldwide Invention Patent.
  • World Only One: 7 in 1 Multifunction Motorcycle, E-Motorbike, E-Tricycle & Quadricycle Headlight.
  • LED Motorcycle Headlight Integrated Certified UNECE.
  • High Beam, Low Beam, Fog Lamp, Front Position Light, Daytime Running Light (DRL) & Additional Cornering Auxiliary Lights (LEFT & RIGHT sides).

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.



7 Inch LED Headlight E-MARK E7 (L1e~L7e) icon








7 Inch LED Headlight Of E-MARK, DOT & Worldwide Invention Patent



7 Inch LED Headlight E-MARK E7 (L1e~L7e) Description





7 Inch LED Headlight E-MARK E7 (L1e~L7e) Beam Pattern





  • 7 inch LED headlight fully complies with the Latest standard of UNECE R148 & R149 Regulations.
  • The most important E-MARK Approved( L1e~ L7e, Class D) & DOT Compliant & Worldwide Invention Patent E7 headlight allows manufacturers legally to import in Europe and U.S.A., sell and gain a high margin.
  • 7 inch LED Motorcycle headlight E7  has obtained the world’s leading Certification Body (test, inspection and certification)– TÜV Rheinland which is highly recognized worldwide as a trademark of public trust credibility.






World Only One LEGAL: 7 In 1 Multifunction Headlight For Motorcycle, E-Motorbike, E-Tricycle & E-Quadricycle



  • 7 inch LED headlight successfully integrated 7 light functions and comply with EU regulation and obtain E-mark certificate & DOT Compliant.
  • World LEGAL Motorcycle headlight for Aftermarket Distributors/Dealers and Manufacturers.

E7 includes…

  • ECE R149 Passing Beam, Driving Beam, Fog Light.
  • ECE R148 Front Position Light, Daytime Running Light(DRL) and  Cornering Auxiliary Lights (LEFT & RIGHT sides).
  • With excellent EMC design!

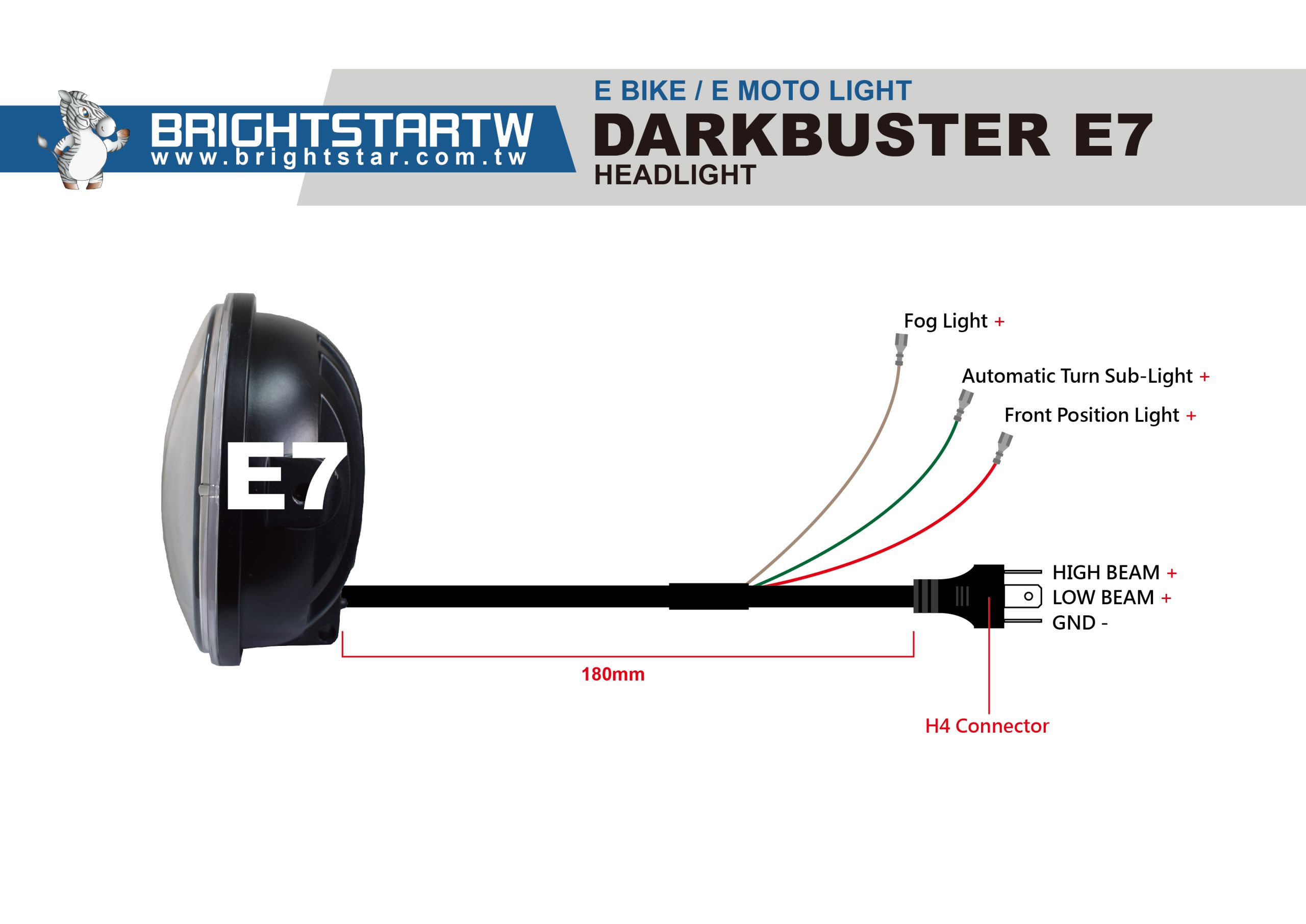

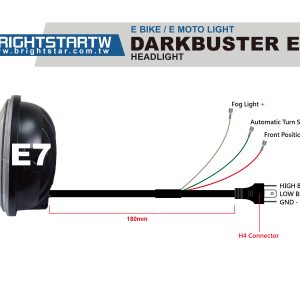

7 Inch LED Headlight E-MARK E7 (L1e~L7e) Component Descriptions





7 Inch LED Headlight E-MARK E7 (L1e~L7e) Actual Illumination Range Demonstration








World’s Most Valuable: LED Headlight Integrated Certified UNECE High Beam, Low Beam, Fog Lamp & Front Position Light



  • Buy a motorcycle 7 inch LED headlight E7 and get an extra Fog lamp!
  • The highest CRI means the best color rendering ability and best penetration at night or through a tunnel on safer riding.
  • The wide light beam angle of the 7 inch LED headlight provides you maximum visibility in poor weather.
  • German OSRAM LED Chip ensures lights are High luminous efficacy, much more energy-saving, Stability & Long lifespan.





7 Inch LED Headlight E-MARK E7 (L1e~L7e) Component Descriptions_B





7 Inch LED Headlight E-MARK E7 (L1e~L7e) Actual Illumination Range Demonstration_B






Extra Lights For More Visible Riding: Cornering Auxiliary Light (LEFT & RIGHT sides)



  • Riding a motorcycle in the early morning or after sunset comes with an additional safety hazard: Decreased visibility. Additional lights improve the visibility of you and your motorcycle. It is necessary for riding anywhere in ideal lighting conditions.
  • ADDITIONAL: Cornering Auxiliary Lights (left and right sides) come with wider visibility and safer riding on Road.
  • Automatic expansive illumination Zone: When you turn/corner left or right, always see and be seen.



7 Inch LED Headlight E-MARK E7 (L1e~L7e) Corning Light Demonstration






BRIGHTSTARTW Keeps Leading Headlight Technology Of Worldwide Invention Patents

What’s more, we are proud to announce that we have secured one more further Innovation Patent for our leading LIGHTING technology.

At BRIGHTSTARTW, we have a strong team with an innovative mindset, but also the capability, knowledge, and expertise necessary to plan and drive through the Invention Patent application and approval process, and to maintain a top position in the Motorcycle lighting market.



7 Inch LED Headlight E-MARK E7 (L1e~L7e) Installation method






Product Concepts Utilizing Invention Patent Technology – E7
  • E7 Front position lamp with Ultra Bright LED meets the requirements of ECE R148 optical design and approval.
  • Road users easily see the standing-vehicles by such Front Position Light to increase safety riding.
  • Lights are important for seeing at night or in poor weather conditions, they are also a crucial safety feature in road traffic.



7 Inch LED Headlight E-MARK E7 (L1e~L7e) Actual Installation Diagram




QUALITY ASSURANCE Based on FMVSS / SAE Standards

S14.4.2.3 Heat Test
S14.5.1 Vibration Test
S14.6.6.3 Temperature Cycle Test
S14.6.9 Sealing Test
Salt Spraying Test(ASTM B117-73)



7 Inch LED Headlight E-MARK E7 (L1e~L7e) QUALITY ASSURANCE




For More Info About DARKBUSTER Series, Click The Bottom As Below:

BRIGHTSTARTW E BIKE & E MOTO LIGHT

7 Inch LED Headlight E-MARK E7 SPEC

Inside Chip OSRAM Chip

Passing Beam (Low): 18W / Driving Beam (High): 36W / Fog Light: 13W

Position Light: 3W
Cornering Aux. Lights: LEFT 10W / RIGHT 10W

Color Temperature 6000K±500K
Luminous Flux Passing Beam (Low): 1800 LM
Driving Beam (High): 3600 LM
Fog Light: 1300 LM
Position Light: 300 LM
Cornering Aux. Lights: LEFT 800 LM / RIGHT 800 LM
Input Voltage 12VDC / 12-120VDC (OPTIONAL)
Weatherproof IP67
Housing Aluminum Alloy
Operating Temperature -20℃~+60℃
Applications L1e-A/B / L2e / L3e / L4e / L5e / L6e / L7e
