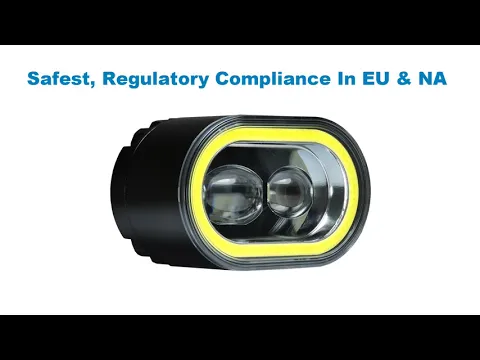

E-MARK Speed Pedelec Headlight DARKBUSTER E1

Category:

  • The E-mark speed pedelec headlight E1 is fully compliant with E-mark ECE R10 high standard of the vehicle & moped bike!
  • High-Performance electric bicycle headlight comes with the most completely E-mark Certificates in the market!
  • E1 is an exclusive E-mark E-bike light – ECE R113 for class 3 electric bicycles for both Hi beam & Lo Beam.
  • Wide application for L1e, L2e, L3e (A1), L4e, L5e, L6e. UP TO 11KW/125CC

All pictures shown are for illustration purposes only. Actual product may vary due to product enhancement.



Speed Pedelec Headlight DB E1 ICON


Speed Pedelec Headlight– The Most Versatile & Robust Solutions
  • Electric bicycle light E1 with durable aluminum housing is resistant to submersion up to a maximum depth of 1 meter underwater (IP 68) and corrosion-resistant.
  • The moped class 3 electric bicycle E1 headlight pass the SAE J575 Standards Quality Assurance so that they can have high performance even in a harsh condition.
  • BRIGHTSTARTW speed pedelec headlight is suitable for Temperature Extremes: -20 ℃ ~ +60 ℃.
  • Speed Pedelec Headlight is a wide application for L1e, L2e, L3e (A1), L4e, L5e, L6e. UP TO 11 KW/125 CC. class 3 electric bicycle.

Ebike lights




Lab Testing According To SAE FMVSS108
S14.4.2.3 Heat Test
S14.5.1 Vibration Test
S14.6.6.3 Temperature Cycle Test
S14.6.9 Sealing Test
Salt Spraying Test ( ASTM B117-73 )

Ebike lights




E-mark ECE R113 Hi-Lo Beam + DRL R87 Speed Pedelec Headlight DARKBUSTER E1 (45 km/h.

Speed Pedelec Headlight DB E1 HI BEAM

Speed Pedelec Headlight DB E1 LO BEAM

  • E1 (45 km/h) moped E-bike lights both high-beam and low-beam have E-mark ECE R113 for class 3 electric bicycle.
  • E-bike lights with ECE R87 Powerful Daytime Running Light can keep you stay safe.
  • Best beam patterns of moped electric bicycle headlight E1 maximum visibility on the roads.




ECE R10 (EMC) Approved



 Speed Pedelec Headlight DB1 R10



  • Electromagnetic Compatibility (EMC) is an emerging issue for the makers and end-users of electric bicycle & speed pedelec bike.
  • Most moped class 3 electric bicycle headlight on the market don’t have ECE R10 (EMC) E-mark approved.
  • EMC means these speed pedelec headlights for electric bicycles can operate in an electric environment & won’t interfere with other electronic devices.
  • E1 electric bicycle speed pedelec headlight with E-mark ECE R10 (EMC) Certificate is fully compliant with the high EMC standard of Vehicles & the entire moped class 3 electric bicycle!

 Speed Pedelec Headlight DB1 EMC



R10:
https://www.unece.org/fileadmin/DAM/trans/main/wp29/wp29regs/2019/E-ECE-324-Add.9-Rev.6.pdf

Read More: https://brightstartw.com/blog/why-led-driving-light-has-to-perform-electromagnetic-compatibility-approval/

DB E1 SPEC

Inside Chip OSRAM Chip / LO:13W / HI:14W
Taiwan Highlight Chip / DRL:5W
Color Temperature 6000K±500K
Luminous Flux (Raw Lumens) LO:1250LM (330lx) / HI:1550LM (420lx)
DRL: 400LM
Input Voltage 12V DC / 10-72 V DC (OPTIONAL)
Weatherproof IP68 (1M)
Housing CNC Machined Aluminum Housing
Operating Temperature -20℃~+60℃
Applications L1e / L2e / L3e(A1) / L4e / L5e / L6e
