Moped Headlight E-MARK DARKBUSTER E3 (L1e~L6e Class C)

Category:

  • Moped Headlight with High Performance ECE R113 Class C Low Beam.
  • It acquired High Standard Vehicle ECE R10 EMC Certificate by passing through the strictest TUV EMC testing!
  • E3 is the best Versatile and Rugged Lighting Solutions for E-Bike, E-moped and E-Mobility.
  • Wide application for L1e, L2e, L3e(A1), L4e, L5e, L6e. (Up to 11KW/125CC)

All pictures shown are for illustration purposes only. Actual product may vary due to product enhancement.

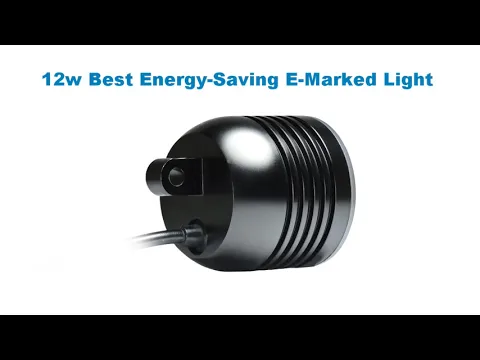

DARKBUSTER E3 – Product Videos



Electric Motor Bike Lights E-mark DB E3 icon-4




Ebike Light E-MARK DARKBUSTER E3-2



Moped Headlight with High Performance ECE R113 Class C Low Beam

E-Bike Headlight Daytime Running Light-E3&E4

  • Moped Headlight E3 equipped with high lux Passing Beam and Remarkable Beam Pattern, so it easily approves E-mark ECE R113 Class C.
  • E3 delivers up to 300 high lumen output but consumes less power and generates less heat thanks to outstanding optical and circuit design.
  • According to the study, vehicles equipped with Daytime Running Light are significant lower crash rate.
  • Don’t miss out E3 powerful daytime running light function for safe riding.

E-Bike Headlight E-MARK DARKBUSTER E3- LO BEAM






With High Standard Vehicle ECE R10 EMC Certificate
  • Electromagnetic compatibility (EMC) is quite crucial but often overlooked issue by Moped makers and Riders.
  • As a matter of fact, most Moped Headlight don’t have E-mark ECE R10 (EMC) Approved.
  • Moped Headlight E3 acquired High Standard Vehicle ECE R10 EMC Certificate by passing through the strictest TUV EMC testing!
  • E3 with ECE R10 EMC Certificate ensures to operates in an electric environment without interfering with other electronic devices, and without being interfered with by other devices.

ECE R10 Approved (EMC Compliance Test)



R10: https://www.unece.org/fileadmin/DAM/trans/main/wp29/wp29regs/2019/E-ECE-324-Add.9-Rev.6.pdf

Read More: https://brightstartw.com/blog/why-led-driving-light-has-to-perform-electromagnetic-compatibility-approval/






Versatile and Rugged Lighting Solutions
  • Extreme temperatures will result in higher failure rates of the headlights but E3 are excepted from it.
  • E3 can withstand extreme temperatures from -20℃ to +60℃.
  • Besides that, its durable aluminum housing provides waterproof protection Rating IP67 and corrosion-resistant.
  • Moped headlight E3 can survive under challenging conditions by performing strictest FMVSS / SAE Standards Quality Assurance
  • Wide application for L1e, L2e, L3e(A1), L4e, L5e, L6e. (Up to 11KW/125CC)

Electric Motor Bike Lights DB E3 Spraying&Temperature Cycle Test-2






QUALITY ASSURANCE Based on FMVSS / SAE Standards

S14.4.2.3 Heat Test
S14.5.1 Vibration Test
S14.6.6.3 Temperature Cycle Test
S14.6.9 Sealing Test
Salt Spraying Test(ASTM B117-73)

Electric Motor Bike Lights DARKBUSTER QUALITY ASSURANCE






BROWSE ALL ACCESSORY YOU MAY NEED



fork-mounting-brackets-bike-headlight-bracket-standard-type-a fork-mount-bike-headlight-bracket-premium-type-a stem-mount-bike-headlight-bracket-type-b

handlebar-mount-bike-headlight-bracket-type-c switch-button-e-bike-power-switch-type-b e-mark-electric-bike-horn








DB E3 SPEC

Inside Chip OSRAM Chip

Passing Beam (Low): 12W
Daytime Running Light: 3W

Color Temperature 6000 K±500 K
Luminous Flux (Raw Lumens) Passing Beam (Low): 1200 LM (300lx)
Daytime Running Light: 200 LM
Input Voltage 12VDC / 12-120VDC (OPTIONAL)
Weatherproof IP 67
Housing Aluminum Alloy (CNC)
Operating Temperature -20℃~+60℃
Applications L1e-A/B / L2e / L3e(A1) / L4e / L5e / L6e

Moped Headlight E mark Class C approval
