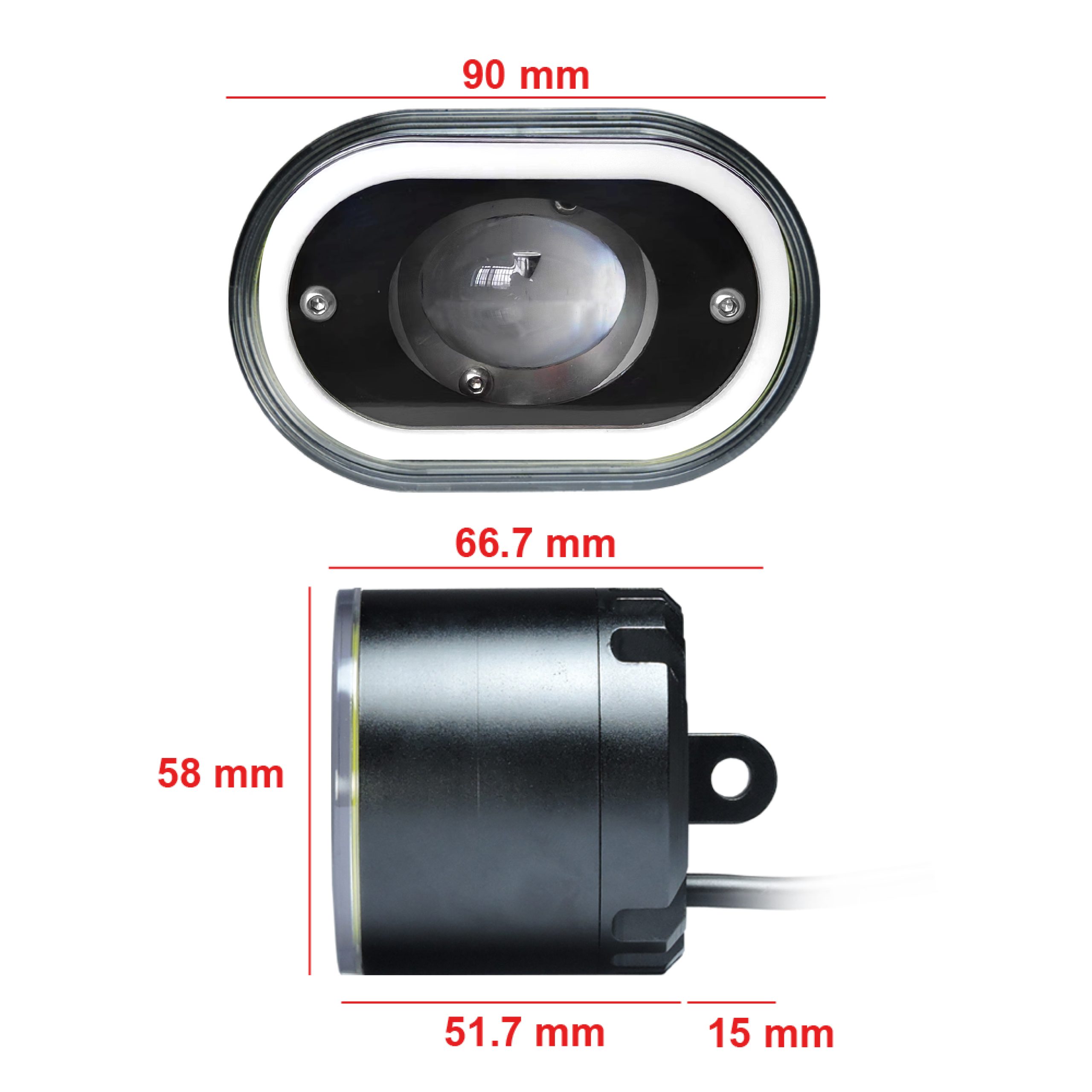

E3S SIZE-C
Ebike Light E-MARK DARKBUSTER E1-4
e bike lights: E-MARK Approved DARKBUSTER E3S-4
e bike lights: E-MARK Approved DARKBUSTER E3S-3
DARKBUSTER ELEC 3S-PHOTO-03
SKU: E127000E3S Category:

e bike lights: E-MARK Approved DARKBUSTER E3S

SKU: E127000E3S Category:

  • e bike lights: E-Mark certified (Class C)
  • Low beam 1500 Lumen(12 Watts), Energy-Saving(Super Low Power Consumption) for S-Pedelec, E-bike, E-Cargo bike & E-moto.
  • CNC Machined Aluminum Alloy Housing is rugged enough to handle any terrain.
  • Front Position Light O-Ring Colors:Yellow or White
  • Waterproof Protection Rating: IP 68 & Corrosion-Resistant.
  • EMC Design
    All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
e bike lights : Front Position Light Color :Yellow or White



  • e bike lights E3S equipped with Eye-Catching Yellow Colour O-Ring of Front Position Light.
  • Another Option : E3S-W model is with White Colour O-Ring Front Position Light.
  • The Front Position Light O-Ring Design Gives Your Ride a Distinctive Look.








Headlight For Electric Bike E-MARK DARKBUSTER E3S icon












High Lumen & Super Low Power Consumption



e bike lights E3S Model is integrated a low beam (passing beam) 1500 Lumens (12 Watts) and a Front Position Light 100 Lumens(1 Watt) into one compact housing.

Built in EMC Design, also Outstanding Optical Design brings you More lumens, Less Watts, Less Heat.





electric-bike-lights-E3S passing beam








E-MARK Certified Headlight. (Class C)



  • Come with the best beam pattern and superior visibility for your safe riding.




Most Robust Material & IP 68 Waterproof



  • Selecting famous European LED chip, a smart driver of Taiwan Smart IC Chip.
  • Aluminum Alloy Housing material electric bike headlight is rugged enough to handle any terrain. (Super-Rugged)
  • Waterproof Protection Rating: IP 68 & Corrosion-Resistant. Withstanding immersion up to 1 meter.
  • In other words, E3S can provide long-term durability under difficult climatic conditions.
  • On top of that, we thoroughly performed stricter FMVSS / SAE Standards Testing requirements to ensure brilliant quality and high-end reliability.
 Headlight For Motorcycle E3S Sealing Test








QUALITY ASSURANCE Based on FMVSS / SAE Standards



S14.4.2.3 Heat Test
S14.5.1 Vibration Test
S14.6.6.3 Temperature Cycle Test
S14.6.9 Sealing Test
Salt Spraying Test(ASTM B117-73)



Headlight For Motorcycle E3S Quality Assurance






BROWSE ALL ACCESSORY YOU MAY NEED



fork-mounting-brackets-bike-headlight-bracket-standard-type-a fork-mount-bike-headlight-bracket-premium-type-a stem-mount-bike-headlight-bracket-type-b

handlebar-mount-bike-headlight-bracket-type-c headlight-switch-e-bike-function-switch-type-a e-mark-electric-bike-horn




Read More Electric Motorcycles Lights E-MARK DARKBUSTER E3S

h4 led bulb motorcycle

DB E3S SPEC

Inside Chip OSRAM Chip

Passing Beam (Low): 12W

Position Light: 1W

Color Temperature 6000K±500K
Luminous Flux (Raw Lumens) Passing Beam (Low): 1500LM
Position Light: 100LM
Input Voltage 12VDC  Only
Weatherproof IP68 (1M)
Housing Aluminum Alloy (CNC)
Operating Temperature -20℃~+60℃
Applications L1e-A/B / L2e / L3e(A1) / L4e / L5e / L6e

E mark Class C Approval
